Induction Pipe Bending Machine

Induction Pipe Bending Machine

Induction Pipe Bending Machine
Induction Pipe Bending MachineInduction Pipe Bending MachineInduction Pipe Bending MachineInduction Pipe Bending MachineInduction Pipe Bending Machine
CategoriesInduction Heating Pipe Bending Machine
BrandWONSTEN
ModelYWG Series
Product NameInduction Pipe Bending Machine
Bending MethodInduction Heat
UsageLarge Diameter Pipe Bending
Update TimeMay 29,2024
Detail Information
The straight pipe or section is placed in the machine bed by guiding it through three coils that match the shape of the profile and by gripping one end of the profile in the bending arm. The bending arm of induction heating pipe bending machine is set to the required radius.

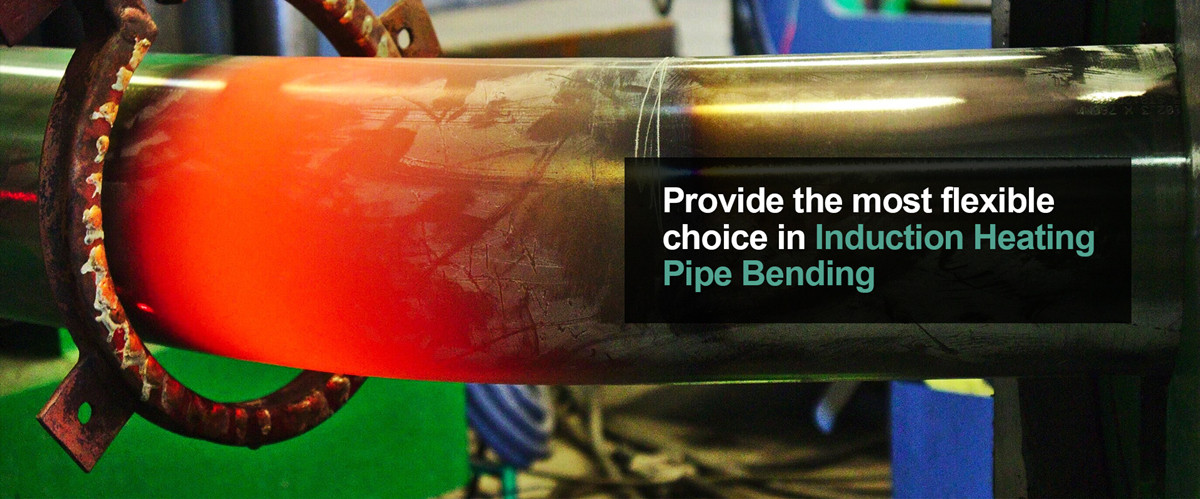

Once the profile is in position the copper heating coil heats up to the required temperature (up to 1,100ºC) and creates a circumferential heated zone. The two adjacent coils with nozzles are cooling the profile by blowing cold air and spraying water on the surface. As the heating coil reaches the required temperature, the profile is gently pushed through the coils. The swing arm moves along with the profile and bends it in the required radius and shapes it into a bend.
