Automatic Pipe End Forming Machine

Automatic Pipe End Forming Machine

Automatic Pipe End Forming Machine
Automatic Pipe End Forming MachineAutomatic Pipe End Forming MachineAutomatic Pipe End Forming MachineAutomatic Pipe End Forming MachineAutomatic Pipe End Forming Machine
CategoriesTube End Forming Machine
BrandWONSTEN
ModelSG60
Product NameTube End Forming Machine
Forming MethodAutomatic
Processing MaterialSteel, Stainless Steel, Copper, Aluminium
ControllerPLC
Terms of PaymentL/C, T/T
Update TimeMay 29,2024
Detail Information
tube end forming machine
SG60 Pipe End Forming Machine

At Wonsten, we offer single head tube end forming machine, double head tube end forming machine and customzied systems.

These machines are designed with the latest technology, which makes the performance of the machine more excellent and more reliable.

Max. End Forming Capacity: ¢60×2mm

Max. End Forming Stroke: 150mm

End Forming Speed: 100/5-6 mm/sec

Max. Working Pressure: 14 Mpa

Motor Power: 5.5 Kw

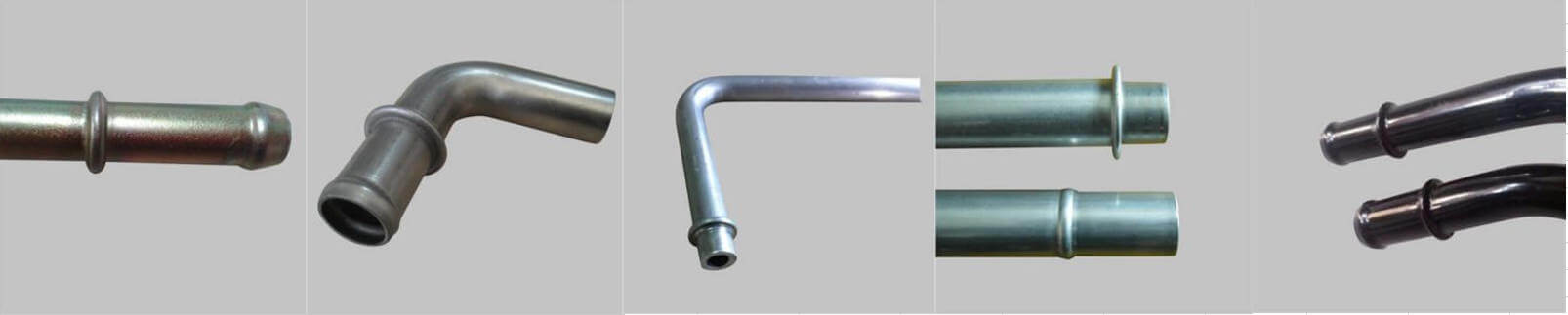

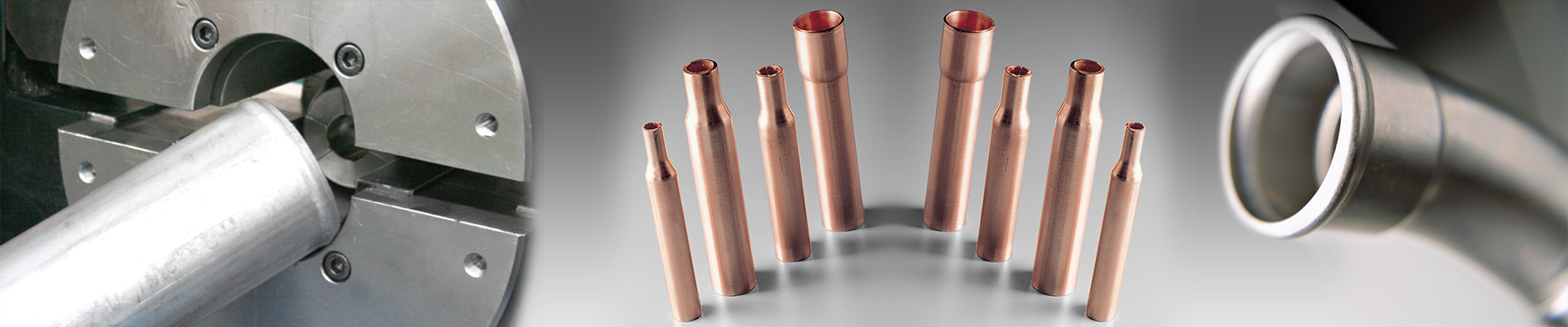

Tooling is designed around customer’s drawings or sample workpieces, 1 station, 2 stations, or multi-station can be customized to process operations.

We can process tubes with diameter up to 110mm. The tube end forming machine uses NC or PLC contron system, very easy to operate. Tool shifting can be controlled by servo motor, the precision could reach ±0.015mm, accurate and stable.
